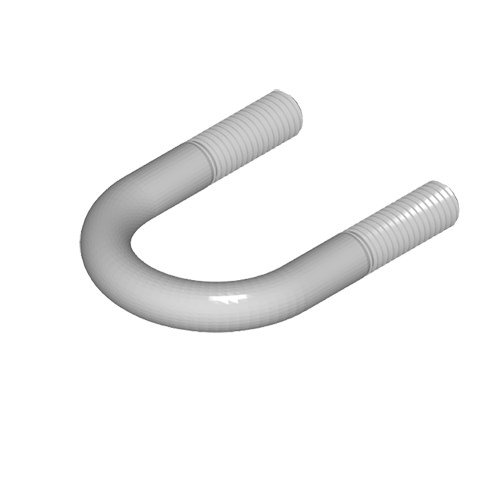

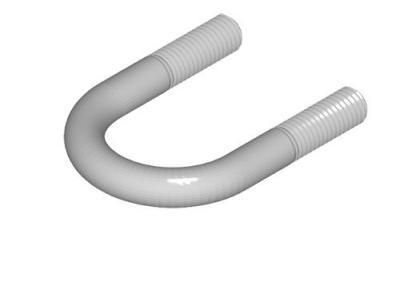

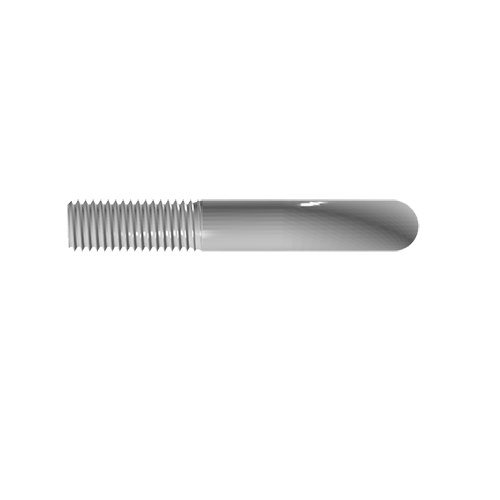

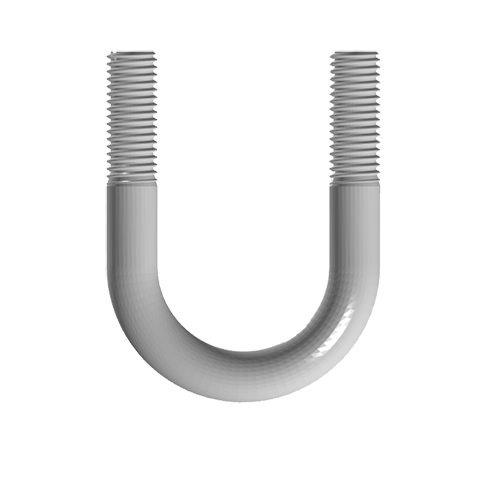

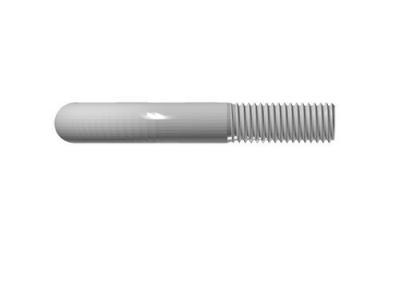

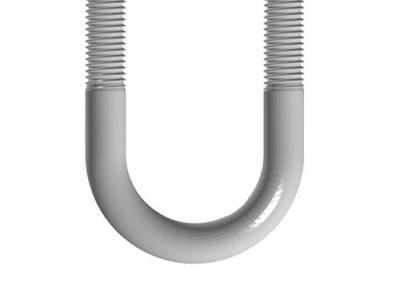

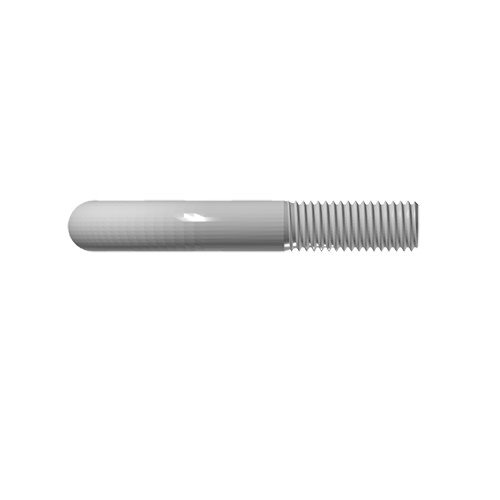

Titanium U Bolts JIS2809
| JIS B 2809 - 1977 Type 1 U Shape Bolts-Unit:mm | |||||||
|---|---|---|---|---|---|---|---|
| d | p | b | n | L | |||
| max | min | max | min | max | min | ||
| M8 | 1.25 | 21.5 | 18.5 | 19 | 17 | 41.5 | 38.5 |
| M10 | 1.5 | 29.5 | 26.5 | 23 | 21 | 51.5 | 48.5 |
| M12 | 1.75 | 36.5 | 33.5 | 27 | 25 | 61.5 | 58.5 |
| M12 | 1.75 | 41.5 | 38.5 | 29 | 27 | 66.5 | 63.5 |
| M14 | 2 | 46.5 | 43.5 | 33 | 31 | 76.5 | 73.5 |
| M14 | 2 | 51.5 | 48.5 | 35 | 33 | 81.5 | 78.5 |
| M18 | 2.5 | 62 | 58 | 45.5 | 42.5 | 102 | 98 |
| M20 | 2.5 | 67 | 63 | 49.5 | 46.5 | 112 | 108 |
| M22 | 2.5 | 72.5 | 67.5 | 55.5 | 52.5 | 122.5 | 177.5 |
| M22 | 2.5 | 77.5 | 72.5 | 59.5 | 56.5 | 132.5 | 127.5 |
| M27 | 3 | 88 | 82 | 72 | 68 | 153 | 147 |
| M30 | 3.5 | 98.5 | 91.5 | 82 | 78 | 178.5 | 171.5 |
| M33 | 3.5 | 103.5 | 96.5 | 91 | 87 | 198.5 | 191.5 |
Material and Specification
- Material: Titanium,Niobium,Tantalum ,Molybdenum and Tungsten
- Specification: Titanium U Bolts DIN3570; Titanium U Bolts JIS2809
- Size: Diameter 8-25 mm for pipes up to 860mm in size
Application
Titanium U-bolts are manufactured from wire and round stock by cold or hot forming methods. U-bolts are sold out throughout industries, are available with saddle clamps, can be custom made as order specification. U bolts normally used for Antenna section secured, Wire cable, Automotive leaf spring and Power Plant. For Corrosion resistant, high strength, long service life, 60% Titanium U Bolts DIN3570 was used as piping supports in Chemical Industry and heavy equipment
Advantage
- Aerospace Grade Titanium round bars as raw material
- Fast shipment: Within 7 days
- 100% Quality control throughout traceability
- 15 years’ Experience in manufacturing Titanium Bolts & Screws
- Technical Service: Your Titanium Expert with One Stop Solution
Customized
Non-standard and special size is available in Titanium ,Molybdenum,Tungsten,Niobium according to your drawing or requirement, for customization and tailor-made requirement, please click here for details. For Tantalum U Bolts and Nbti47 Bolts, please Contact us for more details.
