Titanium Nuts DIN985 – Nylon Lock Nuts

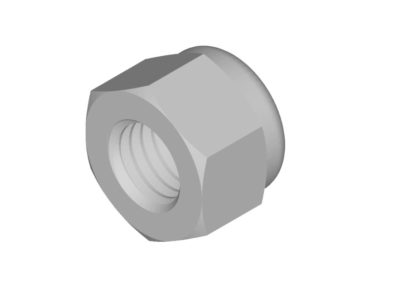

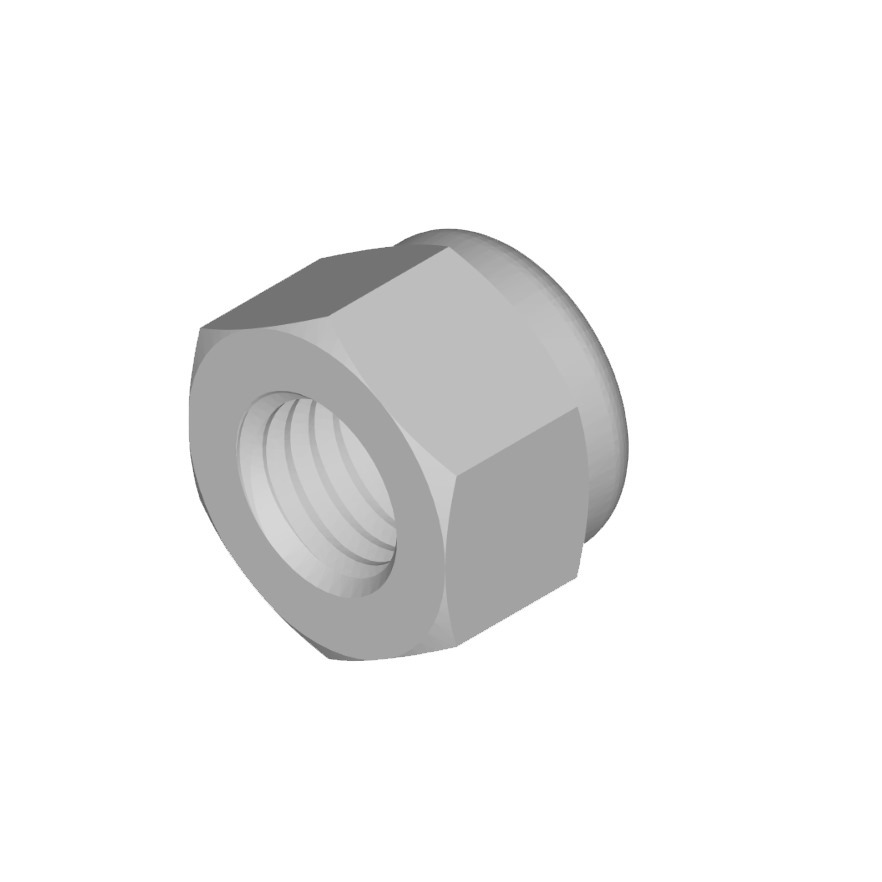

Titanium Nuts DIN985-1

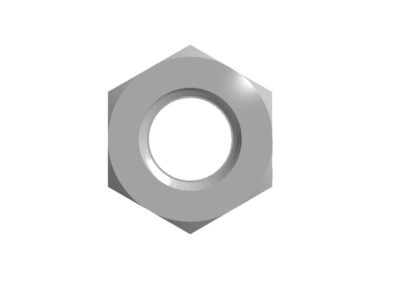

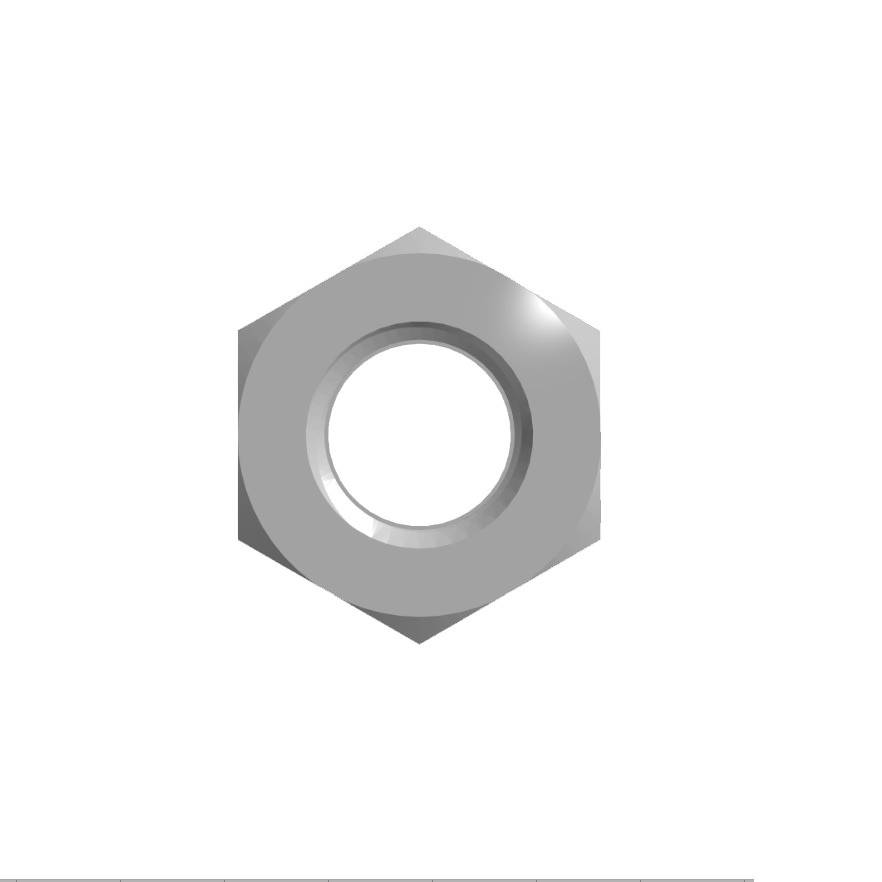

Titanium Nuts DIN985-2

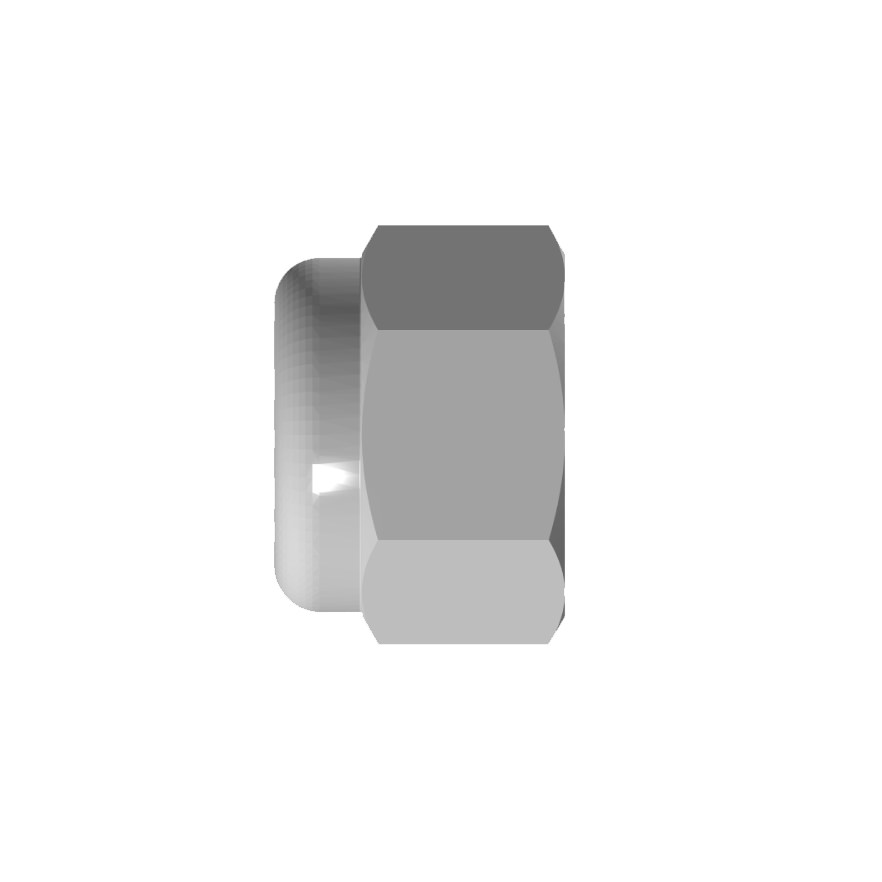

Titanium Nuts DIN985-3

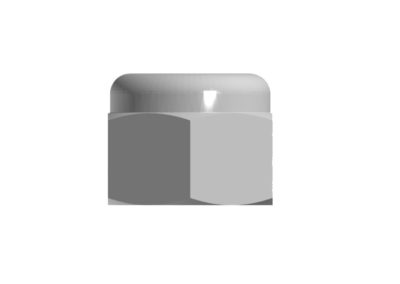

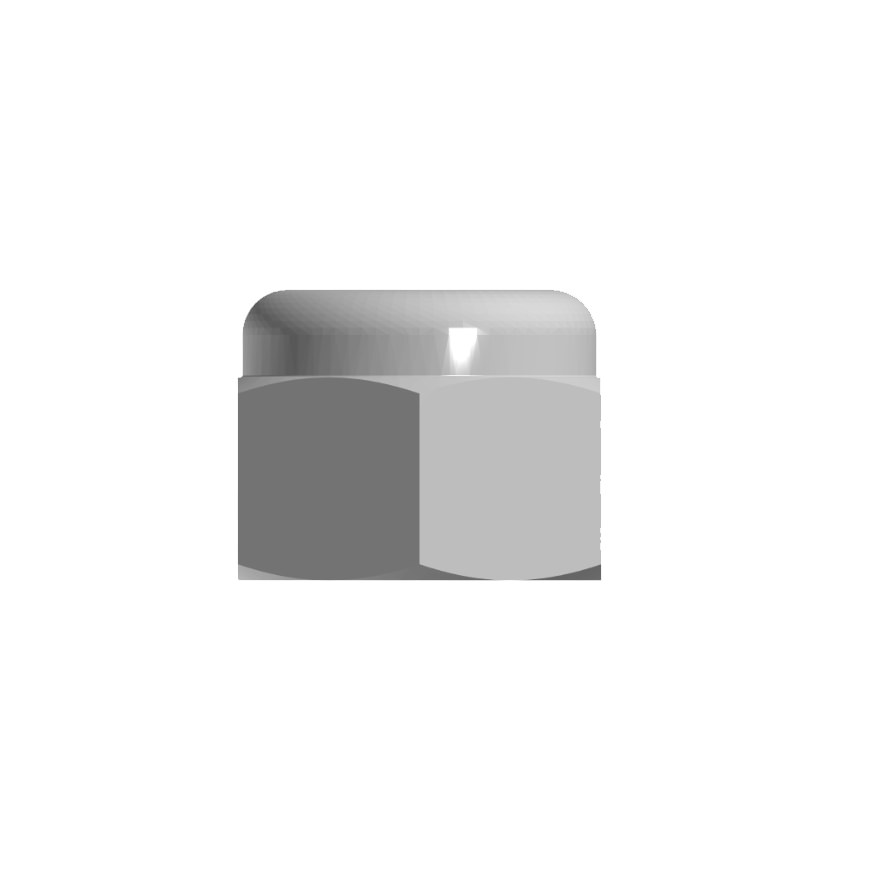

Titanium Nuts DIN985-4
| DIN 985 - 1987 Prevailing Torque Type Hexagon Thin Nuts With Non-Metallic Insert | |||||||
|---|---|---|---|---|---|---|---|
| Unit:mm | |||||||
| d | P | h | m-min | s | Quality of every 1000 pieces of steel products≈kg | ||
| max | min | max | min | ||||
| M3 | 0.5 | 4 | 3.7 | 2.4 | 5.5 | 5.32 | 0.5 |
| M4 | 0.7 | 5 | 4.7 | 2.9 | 7 | 6.78 | 1 |
| M5 | 0.8 | 5 | 4.7 | 3.2 | 8 | 7.78 | 1.4 |
| M6 | 1 | 6 | 5.7 | 4 | 10 | 9.78 | 2.4 |
| M7 | 1 | 7.5 | 7.14 | 4.7 | 11 | 10.73 | 3 |
| M8 | 1/1.25 | 8 | 7.64 | 5.5 | 13 | 12.73 | 5.1 |
| M10 | 1/1.25/1.5 | 10 | 9.64 | 6.5 | 17 | 16.73 | 10.6 |
| M12 | 1.25/1.5/1.75 | 12 | 11.57 | 8 | 19 | 18.67 | 17.2 |
| M14 | 1.5/2 | 14 | 13.3 | 9.5 | 22 | 21.67 | 26 |
| M16 | 1.5/2 | 16 | 15.3 | 10.5 | 24 | 23.67 | 34 |
| M18 | 1.5/2/2.5 | 18.5 | 17.66 | 13 | 27 | 26.16 | 45 |
| M20 | 1.5/2/2.5 | 20 | 18.7 | 14 | 30 | 29.16 | 65 |
| M22 | 1.5/2/2.5 | 22 | 20.7 | 15 | 32 | 31 | 75 |
| M24 | 2/3 | 24 | 22.7 | 15 | 36 | 35 | 100 |
| M27 | 2/3 | 27 | 25.7 | 17 | 41 | 40 | 162 |
| M30 | 2/3.5 | 30 | 28.7 | 19 | 46 | 45 | 212 |
| M33 | 2/3.5 | 33 | 31.4 | 22 | 50 | 49 | 317 |
| M36 | 3/4 | 36 | 34.4 | 25 | 55 | 53.8 | 415 |
| M39 | 3/4 | 39 | 37.4 | 27 | 60 | 58.8 | 499 |
| M42 | 3/4.5 | 42 | 40.4 | 29 | 65 | 63.8 | 628 |
| M45 | 3/4.5 | 45 | 43.4 | 32 | 70 | 68.1 | 771 |
| M48 | 3/5 | 48 | 46.4 | 36 | 75 | 73.1 | 998 |
Material and Size
- Material: Titanium, Niobium, Tantalum , Molybdenum and Tungsten
- Size: M1-M65
Specification
- Titanium Nuts DIN934: Titanium Hexagon nuts (match with Titanium Bolts DIN933)
- Titanium Nuts DIN985: Titanium Prevailing torque type hexagon nuts/ Nylon Lock Nuts
- Titanium Nuts DIN6923: Titanium Hexagon nuts with flange
- Titanium Nuts DIN557: Titanium Square nuts
Application
- Titanium Hexagon Nuts DIN934 widely used in electroplating Industry, Power Plant and Offshore
- Titanium Nylon Lock Nuts mainly used in Marine Pipeline and Machine components
- Gr5 Titanium Flange nuts widely used in Racing Industry ,Motorcycles, Automobile with special tensile strength
- Titanium Square Nuts DIN557 used in Chemical and Oil & Gas Industry
XOT Metals Stocks and fabricates Titanium Metric Nuts size M4,M6,M8,M10,M12 ,M24 and Inch Titanium Hexagon Nuts 3/8” ,5/8” and 1/4 “Self locking Titanium Nuts ,Titanium Motorcycle Nuts ,Titanium Square Nuts For special Project
Advantage
- Aerospace Grade Titanium round bars as raw material
- Fast shipment: Within 7 days
- 100% Quality control throughout traceability
- 15 years’ Experience in manufacturing Titanium Bolts & Screws
- Technical Service: Your Titanium Expert with One Stop Solution
Customized
Non-standard and special size is available in Titanium ,Molybdenum,Tungsten,Niobium according to your drawing or requirement, for customization and tailor-made requirement, please click here for details. For Tantalum Nuts and Nbti47 machined parts, please Contact us for more details.
