Hafnium Wire (Hf Wire) Description
Hafnium Wire (Hf Wire) has good corrosion resistance and high strength. Hafnium is a silvery ductile metal. It has almost the same chemical properties as zirconium, including corrosion-resistant. As hafnium has a great ability to shed electrons into the air and has a high melting point, it is the crucial component of the electrode in plasma cutting. Thus hafnium wire became an important consumption for metal fabrication industries. High purity hafnium wire has better durability in plasma cutting and a reliable source for low-cost high purity hafnium is important to make competitive plasma cutting electrodes.
Hafnium can also be used as the adding elements in heat-resistant alloys, such as tungsten, molybdenum and tantalum alloys. We can offer the hafnium wire (Hf Wire) with various dimensions.
Hafnium Wire (Hf Wire) Specification
- Material: Hf+Zr>99.95%, Zr<1%
- Grade: R1, R3,
- Standard: ASTM B 737
- Dimensions: Φ0.8、Φ1.0、Φ1.07、Φ1.2、Φ1.3、Φ1.5、Φ1.8、Φ2.0、Φ2.5、Φ2.6、Φ3.0
- It can be straight, in coils, or on spools
Standard Packing: In Coils or on Spools, and loaded in the Wooden Box or the Carton Box.
Our Hafnium Wire (Hf Wire) are carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
Hafnium Wire (Hf Wire) Properties
- High-temperature resistance
- Corrosion resistance
- Oxidation resistance
- Easy processing
- Rapid heat absorption and heat release
Hafnium (Hf) Wire Physical Properties
| Appearance | Silver |
|---|---|
| Melting Point | 2227 °C |
| Boiling Point | 4602 °C |
| Density | 13.31 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 35.1 microhm-cm @ 25 °C |
| Electronegativity | 1.3 Paulings |
| Heat of Fusion | 6.0 Cal/gm mole |
| Heat of Vaporization | 155 K-Cal/gm atom at 4602 °C |
| Poisson's Ratio | 0.37 |
| Specific Heat | 0.035 Cal/g/K @ 25 °C |
| Tensile Strength | N/A |
| Thermal Conductivity | 0.230 W/cm/K @ 298.2 K |
| Thermal Expansion | (25 °C) 5.9 µm·m-1·K-1 |
| Vickers Hardness | 1760 MPa |
| Young's Modulus | 78 GPa |
| Melting Point | 2506 K (2233°C, 4051°F) |
| Boiling Point | 4876 K (4603°C, 8317°F) |
| Heat of Fusion | 27.2 kJ/mol |
| Heat of Vaporization | 648 kJ/mol |
| Molar Heat Capacity | 25.73 J/(mol•K) |

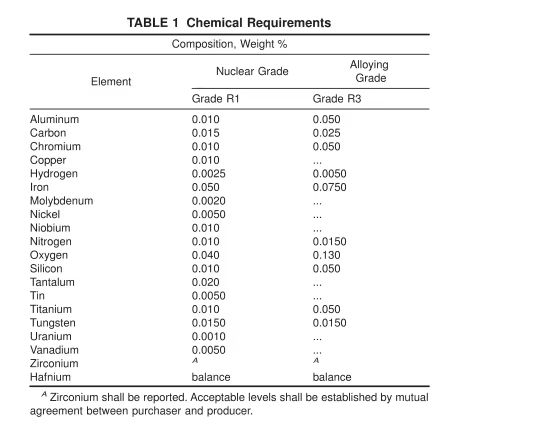

Chemical composition of Hafnium Wire (Hf Wire)
Hafnium Wire (Hf Wire) Applications
- Aerospace industry: Hafnium Wire (Hf Wire) is used to manufacture high-temperature components such as aircraft engine blades and rocket engine nozzles.
- Nuclear industry: Hafnium Wire (Hf Wire) is used as a cladding material for nuclear fuel rods due to its excellent neutron-absorbing properties.
- Petrochemical industry: Hafnium Wire (Hf Wire) is used to produce corrosion-resistant reactors for chemical processing.
- Alloying element: Hafnium Wire (Hf Wire) can be used as an alloying element in combination with other materials such as tungsten and chromium to enhance their properties.
